Bosch Knock Sensor
Bosch Knock Sensor
Click to zoom in

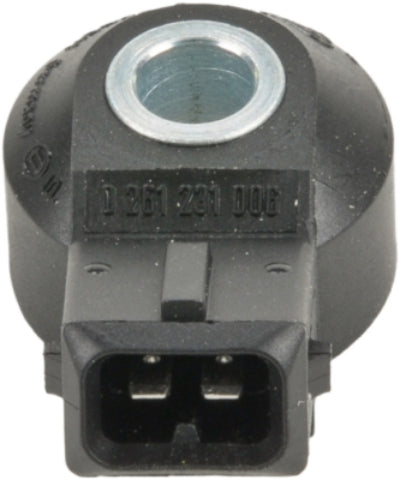

Bosch Knock Sensor

0261231006
Bosch Knock Sensor
$42.00
Genuine, new Bosch Wideband Knock Senor

Sensor wiring:

You must use shielded wire for signal wires, this includes knock sensor signals. Use a 2
conductor shielded wire and connect one conductor to the sensor ground pin on the Ecu. Sensor polarity does not matter. Connect the shield wire at only one end...

Genuine, new Bosch Wideband Knock Senor

Sensor wiring:

You must use shielded wire for signal wires, this includes knock sensor signals. Use a 2
conductor shielded wire and connect one conductor to the sensor ground pin on the Ecu. Sensor polarity does not matter. Connect the shield wire at only one end to the ECU Ground wire as the shield drain.

Sensor Installation:
Ensure that the threads are clean before installation. Thread a M12x1.25 stud into your factory knock sensor position. Install the knock sensor over the stud, and tighten to a max of 15ft. lbs. of torque using a lock nut.
